gas spring series 6-15-150 mm. Each. Specify Newton Force below
Specification
|

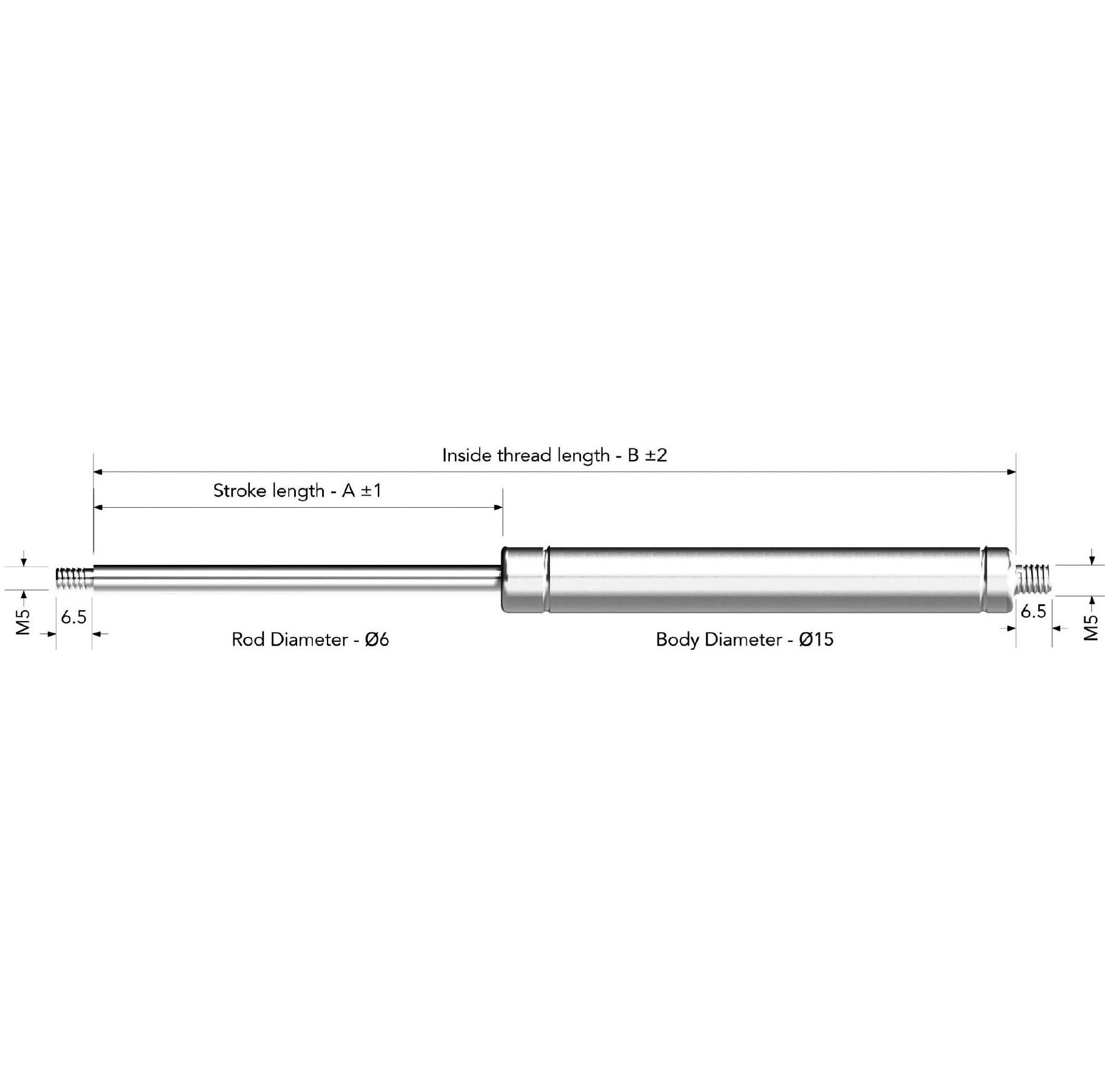

Series6-15 |
#61.615 |
“A” |
“B” |
#62.516 |
#62.522 |
#62.520 |
#62.527 |
Gas Spring |
|
Part ID |
Series 6-15 stainless steel gas spring with valve |
Stroke Length In mm |
Total length without attachments (not counting the thread) 2 x stroke +30 mm |
Eyes, add 2 x 16 mm |
Ball joints, add 2 x 22 mm |
Forks, add 2 x 20 mm |
Swivel rod ends, add 2 x 27 mm |
Thread size and max. N force per length rod |
|
6-15-150 |
Extended |
150 mm |
330 mm |
362 mm |
374 mm |
370 mm |
384 mm |
M5; 25N-400N |
|
6-15-150 |
Compressed |
150 mm |
180 mm |
212 mm |
224 mm |
220 mm |
234 mm |
M5; 25N-400N |
Conversion Table From Newton to Psi, Bar, Kg, and Lbs.
|
Newton* |
Psi* |
Bar* |
Kg* |
Lbs* |
|
25 |
130 |
9.0 |
2.6 |
5.6 |
|
40 |
208 |
14.4 |
4.1 |
9.0 |
|
50 |
261 |
18.0 |
5.1 |
11.2 |
|
65 |
339 |
23.4 |
6.6 |
14.6 |
|
80 |
417 |
28.7 |
8.2 |
18.0 |
|
95 |
495 |
34.1 |
9.7 |
21.4 |
|
110 |
573 |
39.5 |
11.2 |
24.7 |
|
125 |
652 |
44.9 |
12.8 |
28.1 |
|
140 |
730 |
50.3 |
14.3 |
31.5 |
|
155 |
808 |
55.7 |
15.8 |
34.9 |
|
170 |
886 |
61.1 |
17.3 |
38.2 |
|
185 |
964 |
66.5 |
18.9 |
41.6 |
|
200 |
1042 |
71.9 |
20.4 |
45.0 |
|
215 |
1121 |
77.3 |
21.9 |
48.3 |
|
230 |
1199 |
82.7 |
23.5 |
51.7 |
|
245 |
1277 |
88.0 |
25.0 |
55.1 |
|
260 |
1355 |
93.4 |
26.5 |
58.5 |
|
275 |
1433 |
98.8 |
28.1 |
61.8 |
|
290 |
1512 |
104.2 |
29.6 |
65.2 |
|
305 |
1590 |
109.6 |
31.1 |
68.6 |
|
320 |
1668 |
115.0 |
32.6 |
72.0 |
|
335 |
1746 |
120.4 |
34.2 |
75.3 |
|
350 |
1824 |
125.8 |
35.7 |
78.7 |
|
365 |
1902 |
131.2 |
37.2 |
82.1 |
|
380 |
1981 |
136.6 |
38.8 |
85.5 |
|
395 |
2059 |
141.9 |
40.3 |
88.8 |
|
400 |
2085 |
143.7 |
40.8 |
89.9 |
*Psi and Bar relates to the pressure inside the gas spring cylinder for this series.
*Kg and Lbs relates to the weight balanced by a specific Newton for this series
*Force For each application add 10% force to compensate for friction etc.
FORCE CALCULATION FOR HATCHES AS FOLLOWS:
Using 1 gas spring 6-15-150 with 400 Newton Force:
A hatch of max 23.5 inch or 600 mm with a weight of max 30 Lbs. or 13 kg
Using 2 gas springs with 400 Newton Force a hatch can weigh max. 60 lbs. or 28 kg.
Max Hatch Length: Best be max. 23.5 inches or 600 mm.
Length is the distance from the hinge pin to the locking side.
Install the gas spring as far away as possible from the hinge within the range of the stroke.
Note: Torque on the hinges will be at least be twice the force as the weight of the hatch.
GENERAL USEFULL INFORMATION
Use incremental lesser force on the gas spring when hatch is lighter.
Use gas spring with a shorter stroke for smaller hatches.
Use our 8-18 series requiring gas springs with a Newton Forces up to 700 N
Use our 10-23 series requiring gas springs with a Newton Forces up to 1200 N
Use our 14-28 series gas springs requiring Newton Forces up to 2500 N.
Check out our charging Kit #63.110 and our Bleeding Kit #63.001 for professional users.
Use mathematical calculations only for installing gas springs.
We provide general indications to complement your calculations.
By purchasing our products you agree that we are not in any way liable or responsible for your actual installations of our products and its effects.
